R1300GS 22 (KA1) | Engine Electrics

CABLE DUCT, TRANSMISSION

Diagram #12_3203 | 3 parts | 1 available in shop

100%

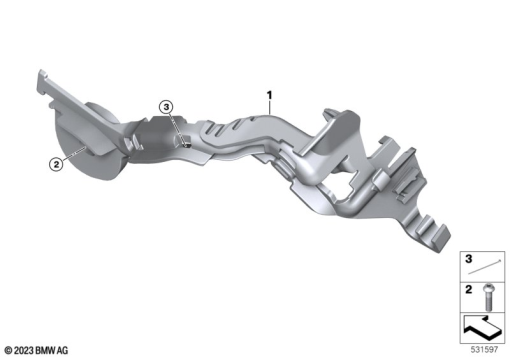

R1300GS 22 (KA1) CABLE DUCT, TRANSMISSION exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
12 52 7 923 614
CABLE DUCT, TRANSMISSION1
2
07 12 9 907 383
FILLISTER-HEAD SCREW - M8X20-8.8-ZNNIV1
3
61 13 1 367 599
CABLE TIE - L=200MM/B=3,6MM1
