R1300GS 22 (KA1) | Electrical System

SPEED SENSOR

Diagram #61_8301 | 3 parts

100%

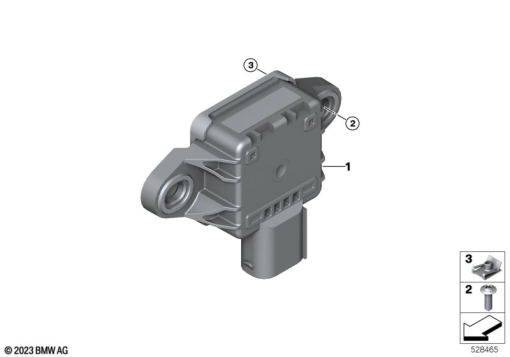

R1300GS 22 (KA1) SPEED SENSOR exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61 35 7 915 091
ANGULAR RATE SENSOR - III-
2
46 63 8 527 781
BODY SCREW WITHOUT SHOULDER - M6X20-
3
07 14 7 693 887
C-CLIP NUT - M6-
