R1300GS 22 (KA1) | Electrical System

RETAINING CLIPS, LINE CLIPS

Diagram #61_6232 | 5 parts

100%

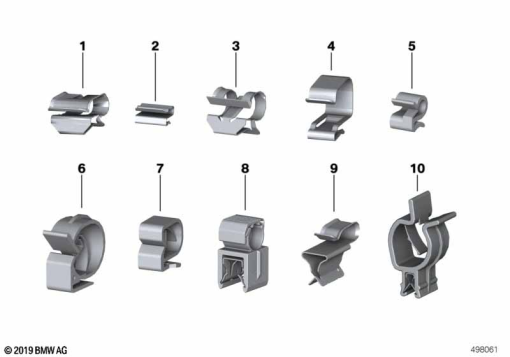

R1300GS 22 (KA1) RETAINING CLIPS, LINE CLIPS exploded view parts diagram

Parts List (5)

#Part NumberDescriptionQty
1
12 52 1 437 136
CLIP1
2
11 78 7 547 315
FIXING CLAMP1
4
61 13 7 704 985
CABLE CLAMP1
7
61 66 7 067 184
TUBING SUPPORT1
9
61 13 8 535 435
FIXING CLAMP1
