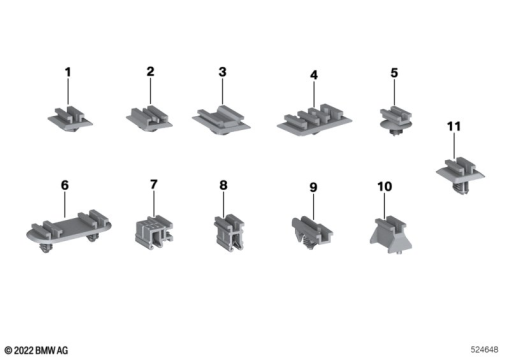

R1300GS 22 (KA1) PLUG-IN CONNECTION BRACKET exploded view parts diagram

Parts List (7)

#	Part Number	Description	Qty
5	61 13 9 152 083	MOUNT FOR ASD PLUG CONNECTION	-
7	61 13 9 123 604	PLUG-IN CONNECTION BRACKET	-
8	61 13 8 038 489	PLUG-IN CONNECTION BRACKET	-
9	61 13 7 713 658	PLUG-IN CONNECTION BRACKET	-
	61 13 7 713 658	PLUG-IN CONNECTION BRACKETAlternative for position 9	-
	61 13 7 713 658	PLUG-IN CONNECTION BRACKETAlternative for position 9	-
	61 13 7 713 658	PLUG-IN CONNECTION BRACKETAlternative for position 9	-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
