R1300GS 22 (KA1) | Electrical System

CONTROL UNIT FOR BDC

Diagram #61_8685 | 3 parts

100%

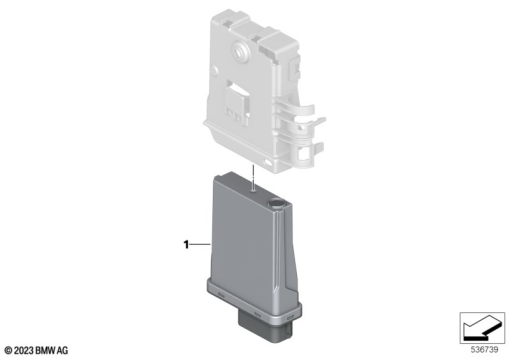

R1300GS 22 (KA1) CONTROL UNIT FOR BDC exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61355A9C8B6
CONTROL UNIT FOR BDC (to 03/24)1
1
61355B45E73
CONTROL UNIT FOR BDC (to 08/24)1
1
61355B5C8B4
CONTROL UNIT FOR BDC1
