R1300GS 22 (KA1) | Electrical System

BATTERY HOLD DOWN

Diagram #61_8641 | 2 parts

100%

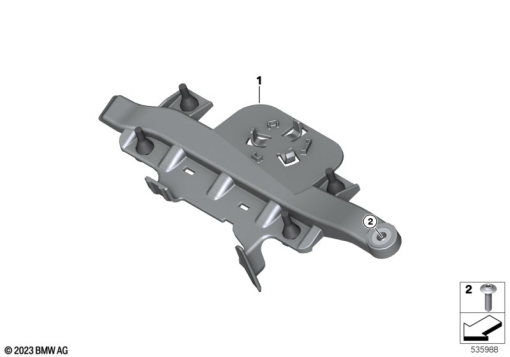

R1300GS 22 (KA1) BATTERY HOLD DOWN exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
61 21 9 830 114
BRACKET FOR BATTERY1
2
46 63 8 527 780
BODY SCREW WITHOUT SHOULDER - M5X20-A2-701
