R1300GS 22 (KA1) | Cooling

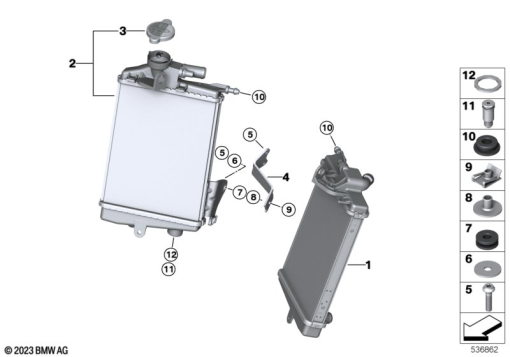

ENGINE RADIATOR WITH MOUNTING HARDWARE
Diagram #17_2160 | 13 parts | 1 available in shop
100%
Parts List (13)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 17 11 1 542 091 | RADIATOR, LEFT | 1 | |
| 2 | 17 11 1 542 092 | RADIATOR, RIGHT | 1 | |
| 3 | 17 11 7 914 009 | COVER LID - 1.5BAR | 1 | |
| 4 | 17 11 1 542 243 | HOLDER RADIATOR LEFT | 1 | |
| 4 | 17 11 1 542 244 | HOLDER RADIATOR RIGHT | 1 | |
| 5 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | 1 | |
| 6 | 07 14 9 151 606 | WASHER - 6,4-25-1,5MM | 1 | |
| 7 | 46 63 1 451 277 | RUBBER GROMMET | 1 | |
| 8 | 46 63 1 451 275 | BUSH - 25X6.4X10-ZNS3 | 1 | |
| 9 | 07 14 7 286 036 | C-CLIP NUT, SELF-LOCKING - M6-ZNS3 | 1 | |
| 10 | 46 63 8 527 151 | GROMMET | 1 | |
| 11 | 17 12 8 523 491 | BANJO BOLT WITH CHECK VALVE - M10X1 | 1 | |
| 12 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 |
