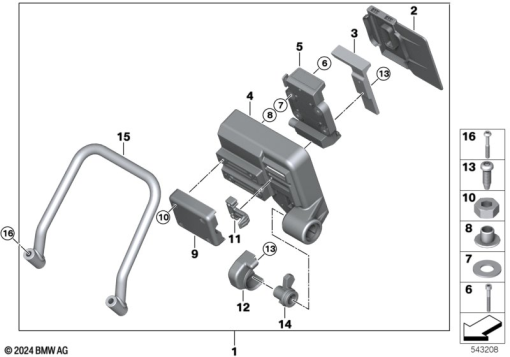

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 65905A6FEE0 | NAVIGATOR HOLDER | - | |
65 90 7 105 865 | NAVIGATOR HOLDERAlternative for position 1 | - | ||
| 2 | 07 12 9 907 397 | FILLISTER-HEAD SCREW - M6X45-8.8-ZNNIV | - | |
65 90 8 524 463 | COVER, NAVIGATORAlternative for position 2 | - | ||
| 3 | 65 90 8 524 465 | BRACKET LOCK, NAVIGATION SYSTEM PREP | - | |
| 4 | 65 90 8 524 462 | BASE PLATE | - | |
| 5 | 65 90 8 354 256 | MOUNT CRADLE WITHOUT AUDIO MODE | - | |
| 6 | 07 12 9 902 610 | INNER HEX BOLT - M4X30-A2-70 | - | |
| 7 | 07 11 9 904 924 | WASHER - 9X4,3X0,8-A2 | - | |
| 8 | 65 90 8 535 827 | DECOUPLING SLEEVE | - | |
| 9 | 65 90 8 525 238 | CLAMPING | - | |
| 10 | 07 11 9 922 854 | HEX NUT - M4-A2-70 | - | |
| 11 | 65 90 8 524 472 | SLIDER | - | |
| 12 | 65 90 8 524 466 | COVER FOR LOCK, GPS PREPARATIONS | - | |
| 13 | 62 11 8 528 443 | FILLISTER HEAD SCREW | - | |
| 14 | 65 90 8 524 456 | LOCK, NAVIGATION PREPARATION | - | |
| 15 | 65 90 7 105 865 | NAVIGATOR HOLDER | - | |
| 16 | 07 12 9 907 397 | FILLISTER-HEAD SCREW - M6X45-8.8-ZNNIV | - |
