R1300GS 22 (KA1) | Accessories

RETROFIT, HEADLIGHT GUARD

Diagram #77_1611 | 4 parts

100%

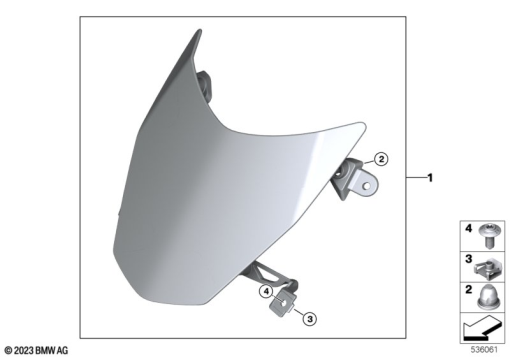

R1300GS 22 (KA1) RETROFIT, HEADLIGHT GUARD exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
77 51 7 105 970
SET: SET OF HEADLIGHT GUARDS1
2
46 63 7 691 016
SNAP-LOCK COUPLING1
3
46 63 8 532 314
C-CLIP NUT, SELF-LOCKING - M51
4
18 51 8 531 936
BODY SCREW WITHOUT SHOULDER - M5X12-A2-701
