R1300GS 22 (KA1) | Accessories
RETROFIT, FOOT PEG, SHADOW

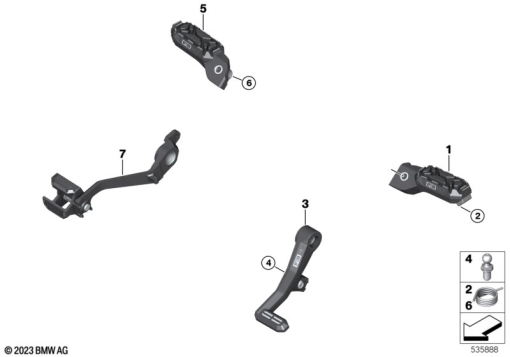

Diagram #77_1600 | 7 parts | 3 available in shop
100%
Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 71 7 923 279 | FOOTREST RIDER LEFT - SHADOW | 1 | |
| 2 | 46 71 8 526 107 | RETAINER SPRING | 1 | |
| 3 | 23 41 7 923 281 | GEARSHIFT LEVER - SHADOW | 1 | |
| 4 | 07 14 8 870 384 | BALL PIN - M8-MK | 1 | |
| 5 | 46 71 7 923 280 | FOOTREST RIDER RIGHT - SHADOW | 1 | |
| 6 | 46 71 8 526 107 | RETAINER SPRING | 1 | |
| 7 | 35 21 7 923 282 | FOOTBRAKE LEVER - SHADOW | 1 |
