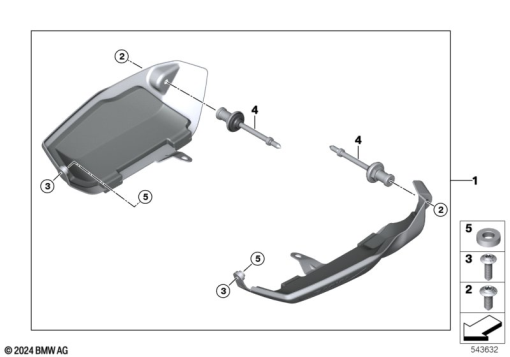

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 14 7 109 278 | SET: PROTECTION CYLINDER HEAD COVER | 1 | |
| 2 | 18 40 7 571 440 | HEX NUT - M8 | 1 | |
| – | 77 14 9 829 089 | ENGINE PROTECTION BAR LEFT | 1 | |
| – | 77 14 9 829 090 | ENGINE PROTECTION BAR RIGHT | 1 | |
| 2 | 46 63 8 568 782 | BODY SCREW WITHOUT SHOULDER - M6X16 | 1 | |
| 3 | 46 63 8 527 781 | BODY SCREW WITHOUT SHOULDER - M6X20 | 1 | |
| 4 | 07 14 8 829 393 | COVER BOLT | 1 | |
| 5 | 77145B4D157 | BUSH - 13X6.5X3.5 | 1 |
