R1300GS 22 (KA1) | Accessories

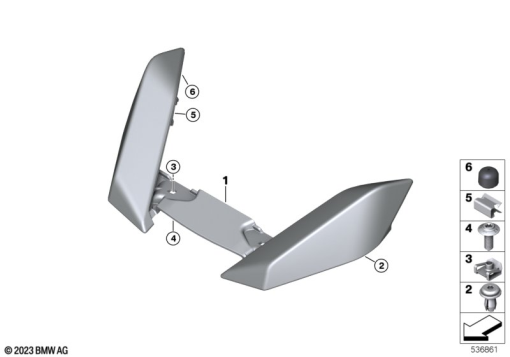

EXTENSION FRONT WHEEL COVER
Diagram #77_1621 | 6 parts | 1 available in shop
100%
Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 8 102 919 | SET: SET EXTENSION FRONT-WHEEL COVER | 1 | |
| 2 | 07145A42E91 | EXPANDING RIVET | 1 | |
| 3 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 4 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 5 | 46 63 8 521 396 | MOUNTING CLIP | 1 | |
| 6 | 46 63 7 726 130 | BUMP STOP | 1 |
