R1300GS 22 (KA1) | Accessories

COVER, TOPCASE CARRIER

Diagram #77_1705 | 2 parts

100%

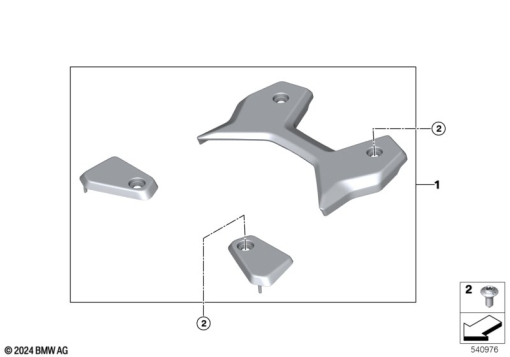

R1300GS 22 (KA1) COVER, TOPCASE CARRIER exploded view parts diagram

Parts List (2)

#Part NumberDescriptionQty
1
77445B48297
SET: SET COVER1
2
46 63 8 521 656
BODY SCREW WITH SHOULDER - M6X14,5-A2-701
