R1250GS 21 (K50) | Wheels

SPOKE WHEEL FRONT

Diagram #36_1769 | 33 parts | 6 available in shop

100%

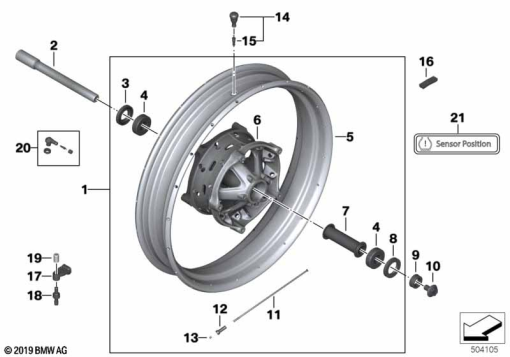

R1250GS 21 (K50) SPOKE WHEEL FRONT exploded view parts diagram

Parts List (33)

#Part NumberDescriptionQty
1
36 31 8 528 530
CROSS SPOKE WHEEL BLACK FRONT - 3,0X191
1
36 31 8 404 330
CROSS-SPOKED WHEEL GOLD FRONT - 3.0X19"1
2
36 31 7 925 190
QUICK-RELEASE AXLE1
3
36 31 8 561 712
SHAFT SEAL - AS25X47X71
4
36 31 8 534 835
GROOVED BALL BEARING - 20X47X141
–
Ball bearing 6204 - 2RS1.
Ball bearing 6204 - 2RS1.1
5
36 31 8 404 332
RIM GOLD FRONT - 3.0X191
5
36 31 8 528 531
RIM BLACK FRONT - 3,0X191
6
36 31 8 548 034
WHEEL HUB BLACK FRONT1
7
36 31 8 551 386
SPACER SHIMS, INNER - D=20.5 L=1051
8
36 31 8 561 712
SHAFT SEAL - AS25X47X71
9
36 31 8 552 158
SPACER BUSHING, EXTERIOR1
10
31 42 8 532 722
HEX BOLT - M12X20-8.81
11
36 31 8 406 050
SPOKE FRONT - L=196MM1
12
36 31 1 540 421
NIPPLE - M4 (to 10/21)1
12
07 14 7 924 204
NIPPLE - M41
13
07 11 9 906 097
GRUB SCREW - M4X51
14
36 31 7 653 064
VALVE - D=15MM1
15
36 31 7 683 236
VALVE - L=20MM1
16
36 31 7 720 635
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G1
16
36 31 7 720 636
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10G1
16
36 31 7 720 637
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15G1
16
36 31 7 720 638
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20G1
16
36 31 7 720 639
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25G1
16
36 31 7 720 640
BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30G1
17
36 31 9 832 032
RDC SENSOR (to 08/22)1
17
36 31 7 914 365
RDC SENSOR (to 08/22)1
17
36 31 7 108 983
RDC SENSOR - 433 MHZ (from 03/22)1
18
36 31 7 108 181
ANGLE VALVE (from 03/22)1
19
36 31 8 359 962
NUT - M8X1.0 (to 08/22)1
19
36 31 9 829 827
INTERNAL TORX SCREW WITH WASHER - M5 (from 03/22)1
20
36 31 8 388 689
SET: REPAIR KIT ANGLED VALVE RDC (to 08/22)1
21
71 21 7 698 971
SIGN "TPC" TIRE PRESSURE CONTROL1
