Parts List (5)

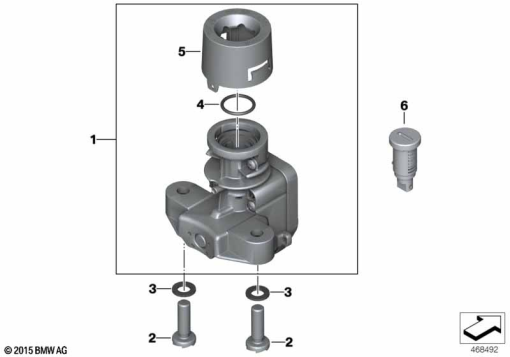

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 25 7 108 720 | IGNITION LOCK W/ ELECTR. IMMOBILIZER ECU | - | |
| 2 | 51 25 7 711 811 | LOCK SCREW - M8X31-MK-ZNS3 | - | |
| 4 | 51 25 2 313 185 | O-RING | - | |
| 5 | 51 25 8 532 990 | COVERING CAP | - | |
| 6 | 51 25 8 545 791 | STEERING LOCK (WITH KEY CODE) | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
