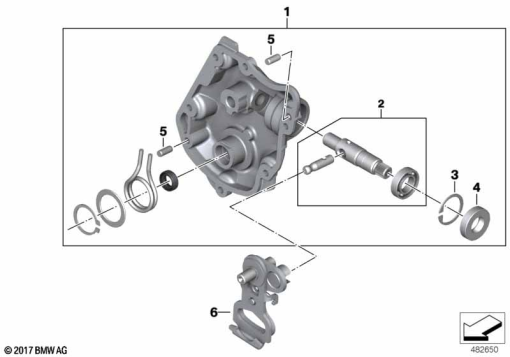

Parts List (7)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 8 371 449 | SHIFT COVER, BLACK | - | |
| 2 | 23 00 8 528 103 | GEARSHIFT SHAFT WITH BEARING | - | |
23 00 8 353 756 | GEARSHIFT SHAFT WITH BEARINGAlternative for position 2 | - | ||
| 3 | 33 30 7 745 110 | LOCK RING - 28X1,2 DIN472 | - | |
| 4 | 23 12 8 520 618 | SHAFT SEAL - 15X30X7 | - | |
| 5 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | - | |
| 6 | 23 31 8 546 536 | PAWL | - |
