R1250GS 21 (K50) | Navigation & Alarm

BOW

Diagram #65_3975 | 4 parts

100%

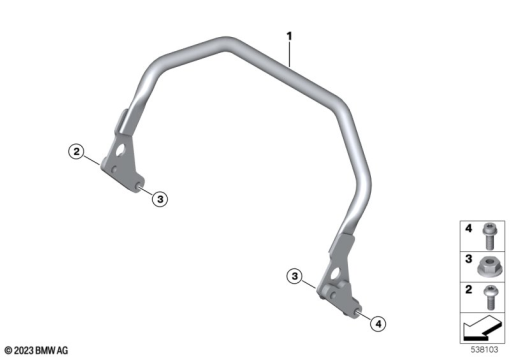

R1250GS 21 (K50) BOW exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
65 90 8 524 473
0.49-
2
07 12 9 907 403
FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV-
3
07 11 9 905 544
HEX NUT WITH PLATE - M6-8-ZNNIV SI-
4
07 12 9 907 195
ISA SCREW - M6X18-8.8-ZNNIV-
