R1250GS 21 (K50) | Instruments Dash

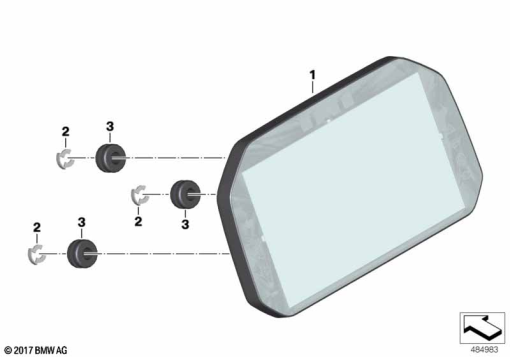

INSTRUMENT CLUSTER / TFT DISPLAY
Diagram #62_0796 | 4 parts
100%
Parts List (4)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 62115A86501 | INSTRUMENT CLUSTER TFT DISPLAY - TFT B 1.0 | - | |
62115B345E9 | INSTRUMENT CLUSTER TFT DISPLAY - TFT B 1.0Alternative for position 1 | - | ||
| 2 | 62 11 7 921 840 | CIRCLIP | - | |
| 3 | 46 63 1 233 200 | RUBBER GROMMET | - |
