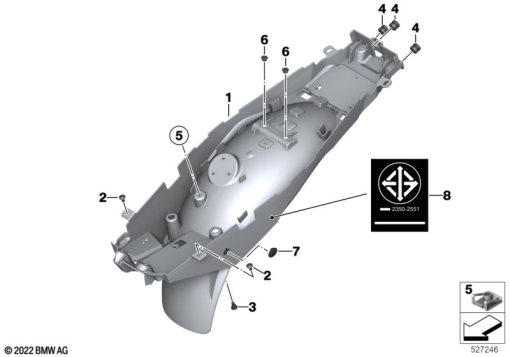

Parts List (6)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 62 1 542 262 | REAR WHEEL COVER | - | |
| 2 | 46 63 8 521 656 | BODY SCREW WITH SHOULDER - M6X14,5-A2-70 | - | |
| 3 | 46 63 8 521 657 | COLLAR SCREW - M6X17,5-A2-70 | - | |
| 4 | 62 21 7 670 749 | RUBBER GROMMET - 8X18X12MM | - | |
| 5 | 07 14 7 133 884 | BODY NUT - M6 | - | |
| 8 | 71 22 1 540 466 | LABEL "EMISSION CONTROL INFORMATION" - USA / CANADA | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
