R1250GS 21 (K50) | Frame, Fairing, Cases

GRILL COVER

Diagram #46_2122 | 3 parts

100%

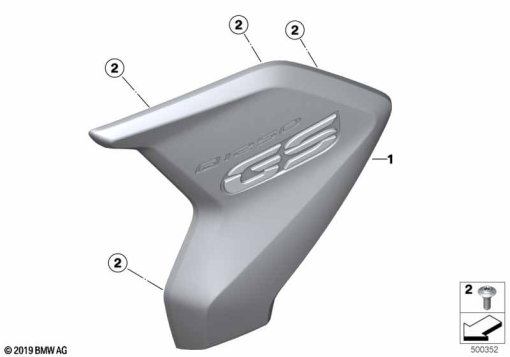

R1250GS 21 (K50) GRILL COVER exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
46 63 8 392 881
RADIATOR COWL WITH LETTERING, LEFT1
1
46 63 8 392 882
RADIATOR COWL WITH LETTERING, RIGHT1
2
46 63 8 534 938
BODY SCREW WITHOUT SHOULDER - M5X14-A2-701
