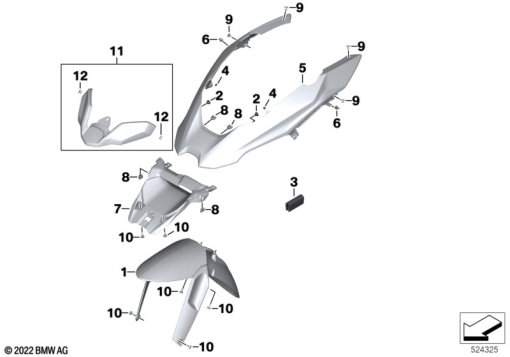

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 8 532 313 | FRONT WHEEL COVER, LOWER | - | |
| 2 | 46 63 8 532 168 | GROMMET | - | |
| 3 | 23 14 1 216 042 | EDGE PROTECTION - L=45MM | - | |
| 4 | 54 34 7 166 771 | RUBBER BUFFER | - | |
| 5 | 46 61 8 560 646 | FRONT WHEEL FENDER, UPPER - ROHTEIL / BLANK | - | |
| 6 | 07 14 8 542 040 | MOUNTING CLIP | - | |
| 7 | 46 61 8 556 634 | FRONT WHEEL COVER CENTER | - | |
| 8 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | - | |
46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5Alternative for position 8 | - | ||
| 9 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | - | |
| 10 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | - | |
46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70Alternative for position 10 | - | ||
46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MKAlternative for position 10 | - | ||
46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70Alternative for position 10 | - | ||
46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70Alternative for position 10 | - | ||
46 63 8 534 943 | BODY SCREW WITHOUT SHOULDER - M5X14 MKAlternative for position 10 | - | ||
| 11 | 77 14 8 561 425 | EXTENSION FRONT WHEEL COVER | - | |
77 31 2 465 265 | SET: EXTENSION FRONT-WHEEL COVER - SALES PACKAGINGAlternative for position 11 | - | ||
| 12 | 46 63 8 521 396 | MOUNTING CLIP | - |
