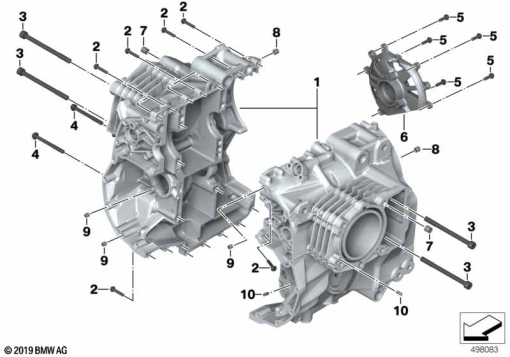

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 00 9 457 115 | CRANKCASE - BLACK | - | |
11 00 9 457 114 | CRANKCASE - SILVERAlternative for position 1 | - | ||
| 2 | 07 12 9 907 400 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 3 | 11 11 7 668 387 | ISA SCREW WITH WASHER - M10X130-ZNS3 | - | |
| 4 | 07 12 9 907 374 | ISA SCREW - M8X80 | - | |
| 5 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 6 | 11 11 8 529 410 | COIL CARRIER | - | |
| 7 | 11 12 1 726 241 | DOWEL - D=12,5MM | - | |
| 8 | 11 12 1 726 238 | DOWEL - D=10,5MM | - | |
| 9 | 11 12 1 726 242 | DOWEL - D=8,5X9MM | - | |
| 10 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | - |
