R1250GS 21 (K50) | Engine

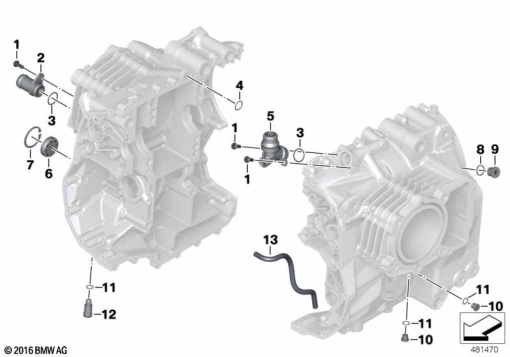

ENGINE HOUSING MOUNTING PARTS
Diagram #11_5284 | 15 parts | 1 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 07 12 9 907 403 | FILLISTER-HEAD SCREW - M6X16-8.8-ZNNIV | 1 | |
| 2 | 11 11 8 529 618 | COOLANT CONNECTION FITTING | 1 | |
| 1 | 07 11 9 906 606 | O-RING - 21,5X2 | 1 | |
| 3 | 07 11 9 906 606 | O-RING - 21,5X2 | 1 | |
| 4 | 11 11 8 406 690 | O-RING - 15,5X1,5 | 1 | |
| 5 | 11 11 8 530 168 | COOLANT CONNECTION FITTING | 1 | |
| 1 | 07 11 9 906 606 | O-RING - 21,5X2 | 1 | |
| 6 | 11 11 8 523 921 | OIL-LEVEL CHECK | 1 | |
| 7 | 07 11 9 906 782 | LOCK RING - 40X1,75-ZNS3 | 1 | |
| 8 | 07 11 9 963 252 | GASKET RING - A16X20-AL | 1 | |
| 9 | 07 11 9 905 957 | SCREW PLUG - M16X1,5-ZNNIV | 1 | |
| 10 | 11 11 9 904 549 | SCREW PLUG - M10X1-ZNNIV SI | 1 | |
| 11 | 07 11 9 963 073 | GASKET RING - A10X13.5-AL | 1 | |
| 12 | 17 12 8 523 491 | BANJO BOLT WITH CHECK VALVE - M10X1 | 1 | |
| 13 | 11 73 8 564 080 | DRAINAGE LINE | 1 |
