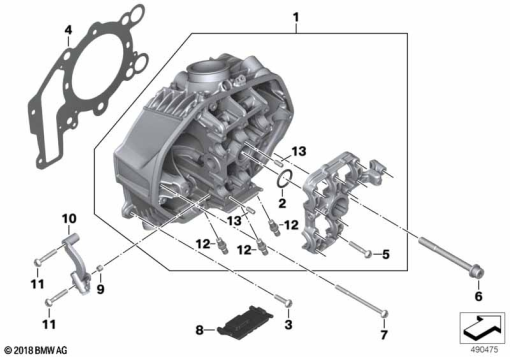

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 12 8 504 123 | CYLINDER HEAD BLACK LEFT | - | |
11 12 8 504 124 | CYLINDER HEAD BLACK RIGHTAlternative for position 1 | - | ||
| 2 | 07 11 9 907 874 | O-RING - 24X3 | - | |
| 3 | 07 12 9 907 401 | ISA SCREW - M6X25-8.8-ZNNIV | - | |
| 4 | 11 12 9 457 540 | CYLINDER HEAD GASKET, 3-LAYER, RIGHT | - | |
11 12 9 457 539 | CYLINDER HEAD GASKET, 3-LAYER, LEFTAlternative for position 4 | - | ||
| 5 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | - | |
| 6 | 11 12 8 546 945 | ISA SCREW WITH WASHER - M10X110-T55 | - | |
| 7 | 07 12 9 907 448 | ISA SCREW - M6X95 | - | |
| 8 | 11 12 8 393 673 | TWIST PROTECTION, LEFT | - | |
11 12 8 393 674 | TWIST PROTECTION, RIGHTAlternative for position 8 | - | ||
| 9 | 11 41 1 722 839 | DOWEL | - | |
| 10 | 11 12 8 393 784 | RETAINER, RIGHT | - | |
11 12 8 393 783 | RETAINER, LEFTAlternative for position 10 | - | ||
| 11 | 07 12 9 907 399 | FILLISTER-HEAD SCREW - M6X35-8.8-ZNNIV | - | |
| 12 | 11 12 8 529 820 | CENTERING PIN | - | |
| 13 | 07 11 9 942 074 | DOWEL PIN - 6M6X14 | - |
