R1250GS 21 (K50) | Engine Electrics

CRANKSHAFT SENSOR

Diagram #12_2358 | 3 parts

100%

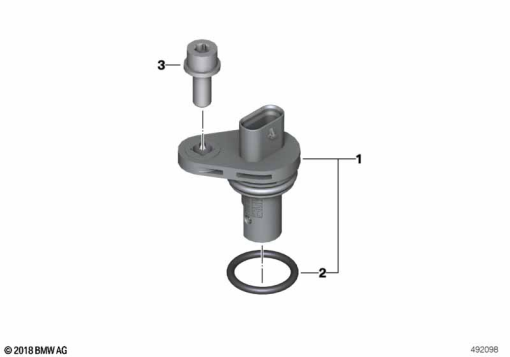

R1250GS 21 (K50) CRANKSHAFT SENSOR exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
13 62 8 387 845
SENSOR1
2
13 62 8 658 854
O-RING - 18,2X2,51
3
07 12 9 908 404
FILLISTER-HEAD SCREW - M6X16-8.8 MK1
