R1250GS 21 (K50) | Engine Electrics

CONDUIT FOR ENGINE

Diagram #12_2416 | 3 parts

100%

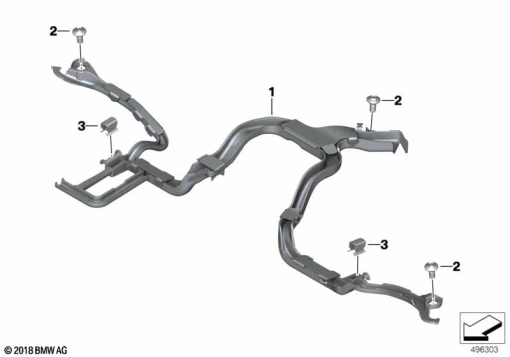

R1250GS 21 (K50) CONDUIT FOR ENGINE exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
12 51 8 404 154
CONDUIT FOR ENGINE1
2
46 63 8 521 656
BODY SCREW WITH SHOULDER - M6X14,5-A2-701
3
61 13 8 545 036
CLAMP1
