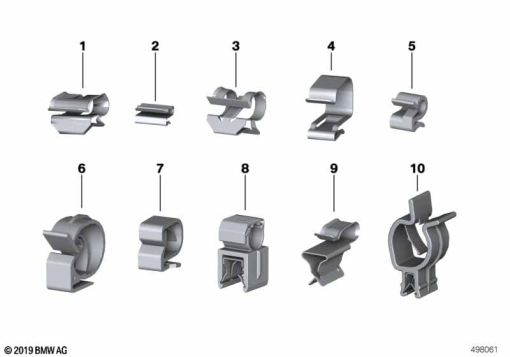

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 12 52 1 437 136 | CLIP | - | |
61 13 7 670 182 | FIXING CLAMPAlternative for position 1 | - | ||
| 2 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | - | |
| 3 | 22 11 1 093 424 | FIXING CLAMP | - | |
| 7 | 61 13 8 350 827 | TUBING SUPPORT | - | |
61 66 7 067 184 | TUBING SUPPORTAlternative for position 7 | - | ||
| 8 | 61 13 8 535 877 | CLIP FOR CORRUGATED TUBING | - | |
| 9 | 61 13 8 535 435 | FIXING CLAMP | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
