R1250GS 21 (K50) | Electrical System

OBD BUSHING HOUSING

Diagram #61_5912 | 3 parts

100%

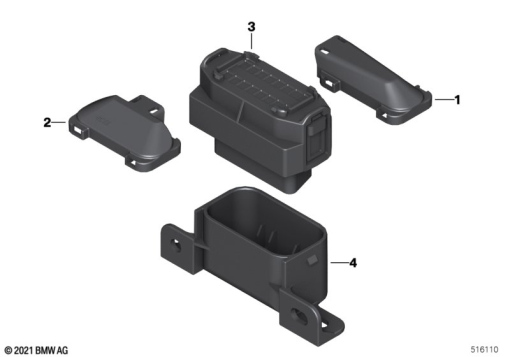

R1250GS 21 (K50) OBD BUSHING HOUSING exploded view parts diagram

Parts List (3)

#Part NumberDescriptionQty
1
61 13 8 549 905
ABDECKKAPPE `OBD` - VAR. 1-
61 13 1 367 599
CABLE TIE - L=200MM/B=3,6MMAlternative for position 1-
3
61 13 8 549 907
OBD BUSHING HOUSING-

BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
