R1250GS 21 (K50) | Cooling

COOLANT LINES

Name: Dapper Motor
Address: Haarlem, Noord-Holland, NL
Telephone: +31232077747
Price range: €€€

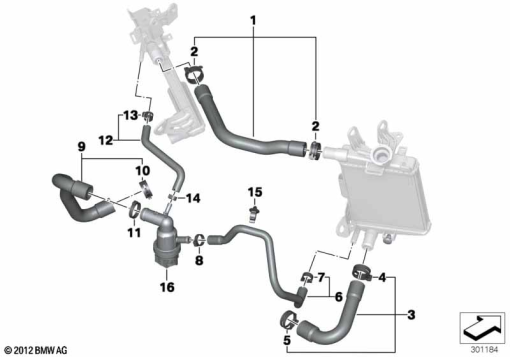

Diagram #17_0683 | 23 parts

100%

Parts List (23)

#	Part Number	Description	Qty
1	17 12 8 523 486	COOLANT HOSE, CONNECTION	-
2	17 12 7 515 474	HOSE CLAMP - D=29MM	-
3	17 12 8 523 487	COOLANT HOSE, RETURN	-
4	17 12 7 515 474	HOSE CLAMP - D=29MM	-
5	64 21 7 677 705	SPRING RING SHELL - D=32MM	-
6	17 12 8 520 220	COOLANT HOSE, BYPASS	-
-	11 15 1 726 339	HOSE CLAMP - 21,3MM	-
-	13 53 7 708 472	HOSE CLAMP - D=16MM	-
7	17 12 7 713 885	SPRING RING SHELL - D=18	-
8	11 15 1 726 339	HOSE CLAMP - 21,3MM	-
9	17 12 8 523 484	COOLANT HOSE, SUPPLY	-
-	13 41 7 838 511	CLAMP	-
10	17 12 7 515 474	HOSE CLAMP - D=29MM	-
11	13 41 7 838 511	CLAMP	-
12	17 12 8 523 485	COOLANT HOSE, BLEED FITTING	-
-	34 32 1 156 893	HOSE CLAMP - 13,2-15,7	-
13	17 12 8 534 692	SPRING RING SHELL - D=15MM	-
14	34 32 1 156 893	HOSE CLAMP - 13,2-15,7	-
15	13 53 7 708 472	HOSE CLAMP - D=16MM	-
16	17 65 8 520 226	THERMOSTAT	-
-	34 32 1 156 893	HOSE CLAMP - 13,2-15,7	-
-	11 15 1 726 339	HOSE CLAMP - 21,3MM	-
-	13 41 7 838 511	CLAMP	-
