R1250GS 21 (K50) | Brakes

FRONT WHEEL BRAKE

Diagram #34_2619 | 30 parts | 9 available in shop

100%

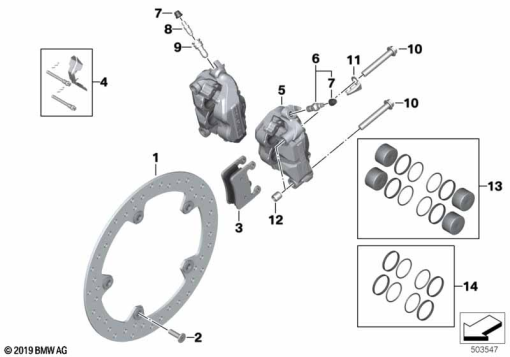

R1250GS 21 (K50) FRONT WHEEL BRAKE exploded view parts diagram

Parts List (30)

#Part NumberDescriptionQty
1
34 11 8 526 566
BRAKE ROTOR WITH RIVET - D=305-4,5MM1
10
34 11 7 700 989
COUNTERSUNK SCREW - M8X27-10.9 MK1
2
34 11 7 700 989
COUNTERSUNK SCREW - M8X27-10.9 MK1
3
34 11 8 405 104
SET: OF BRAKE PADS FRONT - HAYES (to 03/21)1
3
83 12 2 296 187
Brake Pad Paste - 5 ml1
2
34 11 8 405 105
SET: OF MOUNTING PARTS, BRAKE PADS - HAYES (to 03/21)1
3
34 11 8 548 028
SET: OF BRAKE PADS FRONT - BREMBO1
3
83 12 2 296 187
Brake Pad Paste - 5 ml1
2
34 11 8 535 158
SET: OF MOUNTING PARTS, BRAKE PADS - BREMBO1
2
34 11 8 535 158
SET: OF MOUNTING PARTS, BRAKE PADS - BREMBO1
4
34 11 8 405 105
SET: OF MOUNTING PARTS, BRAKE PADS - HAYES (to 03/21)1
4
34 11 8 535 158
SET: OF MOUNTING PARTS, BRAKE PADS - BREMBO1
5
34 11 8 556 206
BRAKE CALIPER BREMBO RIGHT - BLACK1
–
34 11 8 556 205
BRAKE CALIPER BREMBO LEFT - BLACK1
5
34 11 8 556 205
BRAKE CALIPER BREMBO LEFT - BLACK1
–
34 11 8 556 206
BRAKE CALIPER BREMBO RIGHT - BLACK1
5
34 11 8 556 254
BRAKE CALIPER BREMBO RIGHT - GOLD1
–
34 11 8 556 253
BRAKE CALIPER BREMBO LEFT - GOLD1
5
34 11 8 556 253
BRAKE CALIPER BREMBO LEFT - GOLD1
–
34 11 8 556 254
BRAKE CALIPER BREMBO RIGHT - GOLD1
6
34 32 8 559 191
SCREW PLUG WITH VENTILATION1
7
34 21 2 314 001
34 21 2 314 0012
8
34 11 8 520 872
VENT SCREW1
9
34 32 8 549 328
VENTILATION BOLT1
10
34 11 7 719 823
HEXAGON-HEAD BOLT WITH SHANK - M10X65-8.81
11
34 52 8 532 553
CABLE GUIDE1
12
07 14 1 642 512
DOWEL - 12,5X10,5X13,51
13
34 11 1 603 465
SET: OF BRAKE PISTONS WITH SEALS - HAYES (to 03/21)1
13
34 11 8 556 200
SET: OF BRAKE PISTONS WITH SEALS - BREMBO1
14
34 11 1 604 207
SET: OF SEALS - HAYES (to 03/21)1
