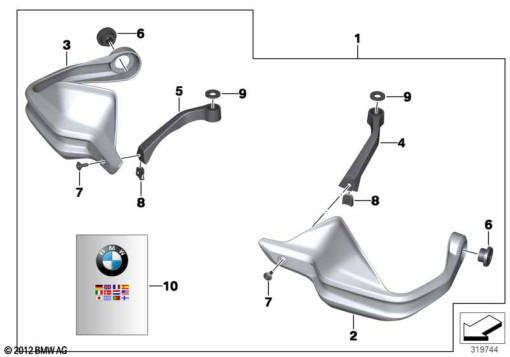

Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 32 2 465 267 | SET: OF HAND PROTECTORS - SALES PACKAGING | 1 | |
| 2 | 46 63 8 523 431 | HAND PROTECTOR LEFT | 1 | |
| 3 | 46 63 8 523 432 | HAND PROTECTOR RIGHT | 1 | |
| 4 | 46 63 8 523 433 | BRACKET, HAND PROTECTOR LEFT | 1 | |
| 5 | 46 63 8 523 434 | BRACKET, HAND PROTECTOR RIGHT | 1 | |
| 6 | 46 63 8 523 435 | BUSH | 1 | |
| 7 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | 1 | |
| 8 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 9 | 46 63 8 526 273 | WASHER | 1 | |
| 10 | 77 01 8 525 881 | INSTALL.INSTRUCTIONS, HAND PROTECTOR | 1 |
