R1250GS 21 (K50) | Accessories
SET OF BRACKETS LED AUXILIARY HEADLIGH

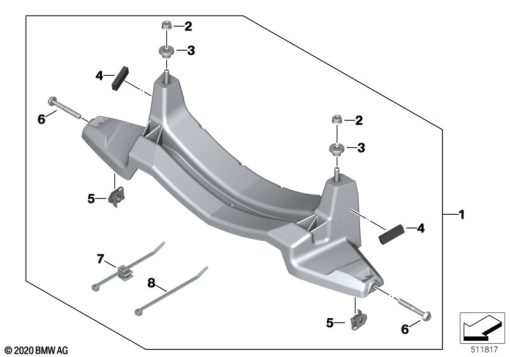

Diagram #77_1357 | 9 parts | 1 available in shop
100%
Parts List (9)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 51 1 542 180 | SET: OF BRACKETS LED AUXILIARY HEADLIGH - NANO | 1 | |
| 1 | 63 17 9 457 322 | LED AUXILIARY HEADLIGHT "NANO" | 1 | |
| 2 | 51 41 7 053 138 | SELF-LOCKING HEX NUT - M6 | 1 | |
| 3 | 77 51 9 898 698 | COLLAR BUSH | 1 | |
| 4 | 07 14 7 306 898 | SEALING STRIP | 1 | |
| 5 | 63 12 7 694 805 | FLAT NUT - M6 | 1 | |
| 6 | 07 12 9 907 397 | FILLISTER-HEAD SCREW - M6X45-8.8-ZNNIV | 1 | |
| 7 | 61 13 9 200 225 | CABLE STRAP WITH BRACKET - L=200MM | 1 | |
| 8 | 61 13 1 367 599 | CABLE TIE - L=200MM/B=3,6MM | 1 |
