R1250GS 21 (K50) | Accessories

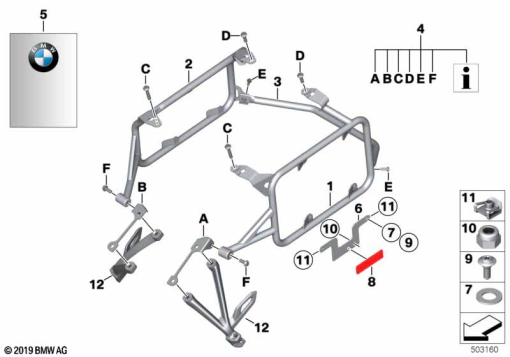

SET MOUNTING PARTS FOR CASE PORTER
Diagram #77_0541 | 15 parts | 1 available in shop
100%
Parts List (15)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 54 8 520 067 | LEFT CASE HOLDER | 1 | |
| 1 | 77 41 2 455 698 | CASE CARRIER BLACK LEFT | 1 | |
| 2 | 46 54 8 520 068 | CASE HOLDER RIGHT | 1 | |
| 2 | 77 41 2 455 699 | CASE CARRIER BLACK RIGHT | 1 | |
| 3 | 46 54 8 520 069 | CROSS BRACE | 1 | |
| 3 | 77 41 2 455 700 | CROSS-MEMBER CASE CARRIER BLACK | 1 | |
| 4 | 77 41 8 543 993 | SET: SET MOUNTING PARTS FOR CASE PORTER | 1 | |
| 5 | 77 01 8 543 994 | INSTALL. INSTRUCTIONS, CASE CARRIER | 1 | |
| 6 | 36 14 8 406 798 | HOLDER REAR REFLECTOR | 1 | |
| 7 | 07 11 9 904 924 | WASHER - 9X4,3X0,8-A2 | 1 | |
| 8 | 63 21 2 346 438 | REAR REFLECTOR RED | 1 | |
| 9 | 46 63 8 534 938 | BODY SCREW WITHOUT SHOULDER - M5X14-A2-70 | 1 | |
| 10 | 07 11 9 905 506 | HEX NUT - M4-A2-70 | 1 | |
| 11 | 46 63 8 532 314 | C-CLIP NUT, SELF-LOCKING - M5 | 1 | |
| 12 | 77 42 2 459 693 | SET: SET FOOTREST BRACKET BLACK | 1 |
