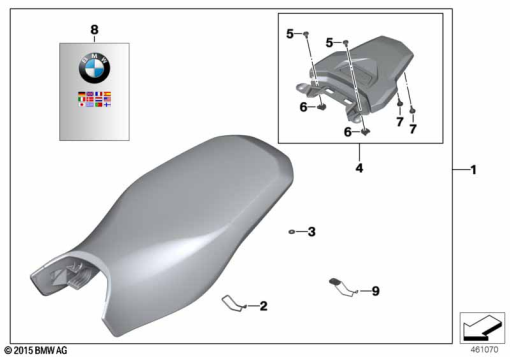

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77 34 8 404 276 | SET: SET, RALLYE SEAT WITH LUGGAGE RACK | - | |
| 2 | 07 11 9 906 054 | O-RING - 40X3 | - | |
07 11 9 909 724 | O-RING - 40X3,5-N-EPDM70Alternative for position 2 | - | ||
| 3 | 07 11 9 904 446 | WASHER - 5-200 HV-ZNNIV | - | |
| 4 | 77 34 8 526 207 | LUGGAGE RACK FOR SINGLE SEAT | - | |
| 5 | 46 63 8 521 653 | BODY SCREW WITH SHOULDER - M5X14,5-A2-70 | - | |
| 6 | 46 63 7 707 388 | FLAT NUT - M5 (to 05/09) | - | |
46 63 7 721 031 | FLAT NUT - M5Alternative for position 6 | - | ||
| 7 | 52 53 7 703 580 | RUBBER SUPPORT | - | |
| 8 | 77 01 8 523 739 | INSTALL GUIDE, SINGLE SEAT/LUGGAGE RACK | - | |
| 9 | 77 34 8 523 755 | RUBBER BAND | - |
