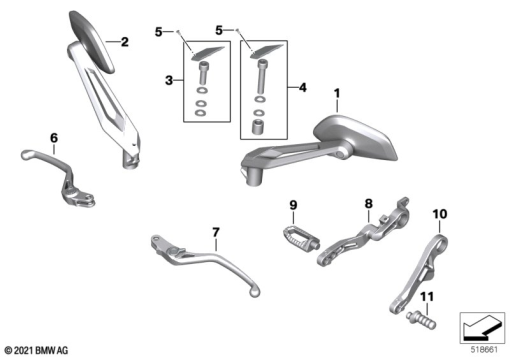

Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 51 16 8 404 053 | MIRROR LEFT | - | |
51 16 8 406 497 | MIRROR LEFT - BLACK-SILVERAlternative for position 1 | - | ||
| 2 | 51 16 8 404 054 | MIRROR RIGHT | - | |
51 16 8 406 498 | MIRROR RIGHT - BLACK-SILVERAlternative for position 2 | - | ||
| 3 | 51 16 8 414 269 | SET: SET MOUNTED PARTS MIRROR | - | |
| 4 | 51 16 8 414 268 | SET: SET MOUNTED PARTS MIRROR | - | |
| 5 | 07 11 9 907 288 | COUNTERSUNK HEAD SCREW - M3X8-A2-70 | - | |
| 6 | 32 72 8 405 749 | BRAKE LEVER - CLASSIC | - | |
32 72 8 405 750 | BRAKE LEVER - STORMAlternative for position 6 | - | ||
32 72 9 829 546 | BRAKE LEVER - SHADOWAlternative for position 6 | - | ||
| 7 | 32 72 9 829 325 | CLUTCH LEVER - SHADOW | - | |
| 8 | 35 21 9 829 572 | FOOTBRAKE LEVER, MACHINED - SHADOW | - | |
35 21 8 405 785 | FOOTBRAKE LEVER, MACHINED - CLASSICAlternative for position 8 | - | ||
35 21 8 405 786 | FOOTBRAKE LEVER, MACHINED - STORMAlternative for position 8 | - | ||
| - | 46 71 9 467 064 | BOLT | - | |
| 9 | 35 21 8 405 788 | STEP PIECE - CLASSIC | - | |
35 21 8 405 789 | STEP PIECE - STORMAlternative for position 9 | - | ||
35 21 9 829 573 | STEP PIECE - SHADOWAlternative for position 9 | - | ||
| 10 | 23 41 8 405 792 | FOOT-OPERATED SHIFT LEVER - STORM | - | |
| - | 46 71 9 467 039 | BOLT - STORM | - | |
| 10 | 23 41 8 405 791 | FOOT-OPERATED SHIFT LEVER - CLASSIC | - | |
| - | 46 71 9 467 063 | BOLT - CLASSIC | - | |
| 10 | 23 41 9 829 557 | FOOT-OPERATED SHIFT LEVER - SHADOW | - | |
| - | 46 71 9 829 553 | BOLT - SHADOW | - | |
| 11 | 23 41 8 405 794 | PEDAL TOE PIECE, SHIFTER - CLASSIC | - | |
23 41 8 405 795 | PEDAL TOE PIECE, SHIFTER - STORMAlternative for position 11 | - | ||
23 41 9 829 556 | PEDAL TOE PIECE, SHIFTER - SHADOWAlternative for position 11 | - |
