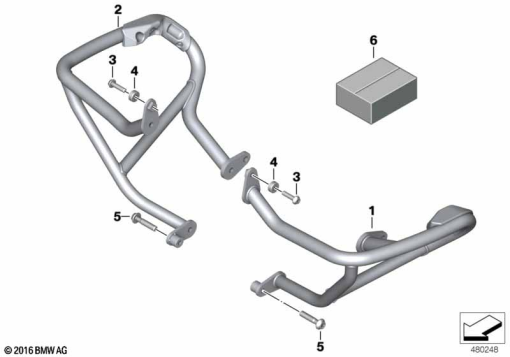

Parts List (19)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 77145A5A561 | ENGINE PROTECTION BAR BLACK LEFT | - | |
| - | 46 63 8 392 145 | ENGINE SPOILER STAINLESS STEEL LEFT | - | |
| - | 46 63 8 396 797 | FRONT SPOILER, LEFT - ROHTEIL / BLANK | - | |
| - | 46 63 8 402 077 | FRONT SPOILER LEFT, PRIMED | - | |
| 1 | 46 63 8 389 433 | LEFT ENGINE PROTECTION BAR | - | |
46 51 9 909 279 | FILLISTER-HEAD SCREW - M10X45-10.9-MKAlternative for position 1 | - | ||
| - | 46 63 8 396 797 | FRONT SPOILER, LEFT - ROHTEIL / BLANK | - | |
| - | 46 63 8 402 077 | FRONT SPOILER LEFT, PRIMED | - | |
| 2 | 77145A5A562 | ENGINE PROTECTION BAR BLACK RIGHT | - | |
| - | 46 63 8 392 146 | ENGINE SPOILER STAINLESS STEEL RIGHT | - | |
| - | 46 63 8 396 798 | FRONT SPOILER, RIGHT - ROHTEIL / BLANK | - | |
| - | 46 63 8 402 078 | FRONT SPOILER RIGHT, PRIMED | - | |
| 2 | 46 63 8 389 434 | RIGHT ENGINE PROTECTION BAR | - | |
| - | 46 51 9 909 279 | FILLISTER-HEAD SCREW - M10X45-10.9-MK | - | |
| - | 46 63 8 396 798 | FRONT SPOILER, RIGHT - ROHTEIL / BLANK | - | |
| - | 46 63 8 402 078 | FRONT SPOILER RIGHT, PRIMED | - | |
| 3 | 07 12 9 907 381 | FILLISTER-HEAD SCREW - M8X30-8.8-ZNNIV | - | |
| 4 | 77 14 8 548 683 | BUSH - DI=9, L=8 | - | |
| 5 | 46 51 9 909 279 | FILLISTER-HEAD SCREW - M10X45-10.9-MK | - |
