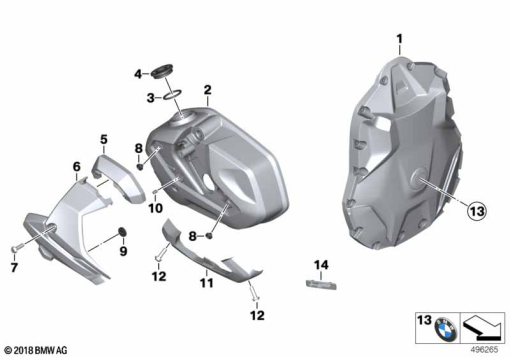

Parts List (36)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 11 14 8 405 478 | FRONT COVER MILLED - CLASSIC | - | |
11 14 8 405 515 | FRONT COVER MILLED - STORMAlternative for position 1 | - | ||
11 14 8 405 516 | FRONT COVER MILLED - HPAlternative for position 1 | - | ||
11 14 9 829 741 | CRANKCASE COVER FRONT MILLED - SHADOWAlternative for position 1 | - | ||
| 2 | 11 12 8 405 481 | CYLINDER HEAD COVER, MILLED, LEFT - CLASSIC | - | |
11 12 8 405 485 | CYLINDER HEAD COVER, MILLED, LEFT - STORMAlternative for position 2 | - | ||
11 12 8 405 482 | CYLINDER HEAD COVER, MILLED, LEFT - CLASSICAlternative for position 2 | - | ||
11 12 8 405 489 | CYLINDER HEAD COVER, MILLED, LEFT - HP/SHADOWAlternative for position 2 | - | ||
11 12 8 405 486 | CYLINDER HEAD COVER, MILLED, LEFT - STORMAlternative for position 2 | - | ||
11 12 8 405 490 | CYLINDER HEAD COVER, MILLED, LEFT - HP/SHADOWAlternative for position 2 | - | ||
| 3 | 07 11 9 904 950 | O-RING - 27X3,2 | - | |
| 4 | 11 12 8 396 740 | OIL FILLER PLUG - CLASSIC | - | |
11 12 8 394 848 | OIL FILLER PLUG - STORMAlternative for position 4 | - | ||
11 12 8 405 514 | OIL FILLER PLUG - HPAlternative for position 4 | - | ||
11 12 9 829 725 | OIL FILLER PLUG - SHADOWAlternative for position 4 | - | ||
| 5 | 11 12 8 405 507 | COVERING LEFT - CLASS.STOR.SHA. | - | |
11 12 8 405 508 | COVERING RIGHT - CLASS.STOR.SHA.Alternative for position 5 | - | ||
| 6 | 11 12 8 405 495 | IGNITION COIL COVER, MILLED, LEFT - CLASSIC | - | |
11 12 8 405 503 | IGNITION COIL COVER, MILLED, LEFT - HPAlternative for position 6 | - | ||
11 12 9 829 735 | IGNITION COIL COVER, MILLED, LEFT - SHADOWAlternative for position 6 | - | ||
11 12 8 405 496 | IGNITION COIL COVER, MILLED, RIGHT - CLASSICAlternative for position 6 | - | ||
11 12 8 405 504 | IGNITION COIL COVER, MILLED, RIGHT - HPAlternative for position 6 | - | ||
11 12 9 829 736 | IGNITION COIL COVER, MILLED, RIGHT - SHADOWAlternative for position 6 | - | ||
| 7 | 61 31 8 547 664 | BODY SCREW WITHOUT SHOULDER - M6X16 A2 MK | - | |
| 8 | 11 12 8 393 252 | RUBBER | - | |
| 9 | 11 12 8 393 277 | RUBBER ELEMENT | - | |
| 10 | 07 11 9 907 038 | DOWEL PIN - 5M6X10 | - | |
| 11 | 77 12 9 444 601 | ABRASIVE PAD, BLACK, LEFT | - | |
11 12 9 829 849 | SLIDER PAD, LEFT - BLUE (from 08/20)Alternative for position 11 | - | ||
11 12 9 829 745 | SKID PAD YELLOW LEFTAlternative for position 11 | - | ||
77 12 9 444 602 | ABRASIVE PAD, BLACK, RIGHTAlternative for position 11 | - | ||
11 12 9 829 850 | SLIDER PAD, RIGHT - BLUE (from 08/20)Alternative for position 11 | - | ||
11 12 9 829 746 | SKID PAD YELLOW RIGHTAlternative for position 11 | - | ||
| 12 | 07 12 9 907 402 | FILLISTER-HEAD SCREW - M6X20-8.8-ZNNIV | - | |
| 13 | 11 12 9 457 298 | BADGE | - | |
| 14 | 11 12 9 457 299 | BADGE | - |
