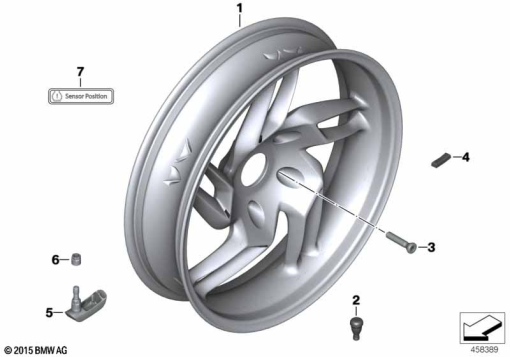

Parts List (25)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 36 31 7 707 408 | SILVER REAR WHEEL - 4.00X17" | - | |
| 2 | 36 31 7 653 064 | VALVE - D=15MM | - | |
| 3 | 36 31 7 673 903 | WHEEL BOLT - M10X1,25X40 | - | |
| 4 | 36 31 7 720 635 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 5G | - | |
36 31 7 720 636 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 10GAlternative for position 4 | - | ||
36 31 7 720 637 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 15GAlternative for position 4 | - | ||
36 31 7 720 638 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 20GAlternative for position 4 | - | ||
36 31 7 720 639 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 25GAlternative for position 4 | - | ||
36 31 7 720 640 | BALANCE WEIGHT, ZINC, W. ADHESIVE FOIL - 30GAlternative for position 4 | - | ||
| 5 | 36 31 9 832 032 | RDC SENSOR (to 08/22) | - | |
| - | 36 31 8 359 962 | NUT - M8X1.0 (to 08/22) | - | |
| - | 36 31 8 565 086 | VALVE - RDC (to 08/22) | - | |
| 5 | 36 31 7 914 365 | RDC SENSOR | - | |
| - | 36 31 8 359 962 | NUT - M8X1.0 | - | |
| - | 36 31 8 565 086 | VALVE - RDC | - | |
| 6 | 36 31 8 520 871 | SET: REPAIR KIT, TIRE PRESSURE MONITOR VALVE - RDC (to 05/13) | - | |
| - | 36 31 8 532 731 | SENSOR WITH VALVE - RDC (to 05/13) | - | |
| - | 36 31 8 532 732 | RDC SENSOR (to 05/13) | - | |
| 6 | 36 31 8 359 962 | NUT - M8X1.0 | - | |
| - | 36 31 8 567 683 | RDC SENSOR | - | |
| - | 36 31 7 914 365 | new RDC sensor | - | |
| 6 | 36 31 8 565 086 | VALVE - RDC | - | |
| - | 36 31 8 359 962 | NUT - M8X1.0 | - | |
| - | 36 31 8 567 683 | RDC SENSOR | - | |
| 7 | 71 21 7 698 971 | SIGN "TPC" TIRE PRESSURE CONTROL | - |
