R1200GS 05-07 (K25) | Vehicle Trim
PAINTED PARTS 947 OZEANBLAU

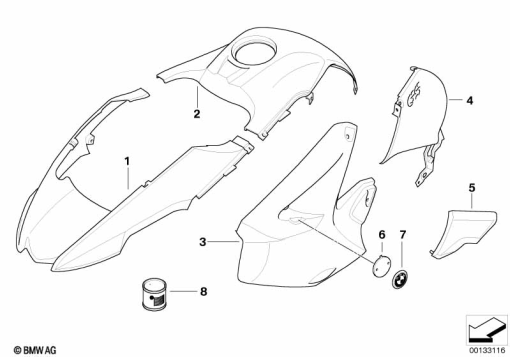

Diagram #51_5342 | 23 parts | 7 available in shop
100%
Parts List (23)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 46 61 7 667 678 | FRONT WHEEL FENDER - ROHTEIL / BLANK (to 02/04) | 1 | |
| 2 | 46 63 7 667 697 | COVERING FUEL TANK, PRIMED (to 02/04) | 1 | |
| 2 | 46 63 7 667 698 | COVERING FUEL TANK - ROHTEIL / BLANK (to 02/04) | 1 | |
| 3 | 46 63 7 682 909 | SIDE SECTION, BLACK, LEFT | 1 | |
| 3 | 46 63 7 682 910 | SIDE SECTION, BLACK, RIGHT | 1 | |
| 3 | 46 63 7 710 251 | SIDE SECTION, GRANITGRAY, MATT, LEFT | 1 | |
| 3 | 46 63 7 710 252 | SIDE SECTION, GRANITGRAY, MATT, RIGHT | 1 | |
| 4 | 46 63 7 694 534 | TANK TRIM PANEL, RIGHT - ALU NATUR | 1 | |
| 4 | 46 63 7 727 273 | TANK TRIM PANEL, LEFT - ALU NATUR | 1 | |
| 5 | 46 63 7 677 515 | SIDE TRIM, BLACK, LEFT | 1 | |
| 5 | 46 63 7 677 516 | SIDE TRIM, BLACK, RIGHT | 1 | |
| 6 | 46 63 7 672 095 | PLAQUE HOLDER, LEFT | 1 | |
| 6 | 46 63 7 672 096 | PLAQUE HOLDER, RIGHT | 1 | |
| 7 | 51 14 8 164 924 | BADGE - D=58MM | 1 | |
| 8 | 51 91 0 145 923 | BASE PAINT, TWO-COAT BLACK II - U103/500ML | 1 | |
| 8 | 51 91 0 301 947 | SET: TOUCH-UP STICK BLACK - 2X12ML 668/C2W | 1 | |
| 8 | 51915A55B65 | SET: SPRAY PAINT SOLID BLACK - 2X150MLU668/C2W | 1 | |
| 8 | 51 91 7 682 558 | METALLIC PAINT OZEAN-BLUE - 500ML 948 | 1 | |
| 8 | 51 91 7 682 559 | SET: METALLIC PAINT SPRAY OZEANBLUE - 948 | 1 | |
| 8 | 51 91 7 682 560 | SET: METALLIC TOUCH UP PENCIL OZEANBLUE - 948 | 1 | |
| 8 | 51 91 7 688 554 | METALLIC PAINT GRANIT-GREY - M934/500ML | 1 | |
| 8 | 51 91 7 688 555 | SET: METALLIC PAINT SPRAY GRANIT-GREY - M934 | 1 | |
| 8 | 51 91 7 688 556 | SET: METALLIC TOUCH UP PENCIL GRANIT-GREY - M934 | 1 |
