R1200GS 05-07 (K25) | Transmission
MANUAL TRANSMISSION

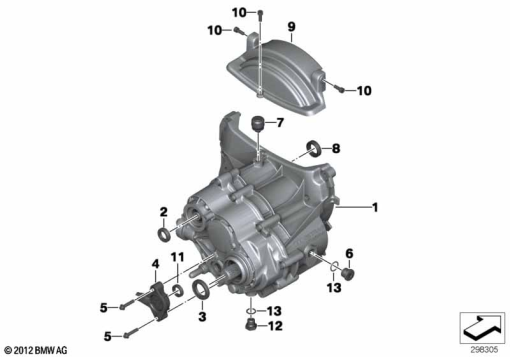

Diagram #23_0963 | 31 parts | 1 available in shop
100%
Parts List (31)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 23 00 7 693 731 | 6-SPEED MANUAL TRANSMISSION - SILVER (to 10/04) | 1 | |
| 1 | 23 00 7 711 960 | POTENTIOMETER WITH WIRE - L=300MM (to 10/04) | 1 | |
| 1 | 21 21 7 697 737 | CLUTCH PLATE (to 10/04) | 1 | |
| 1 | CLA02600 | CLUTCH PLATE | 1 | |
| 1 | CLA97737A | OIL-RESIST CLT PLT R1200 04-> | 1 | |
| 1 | 23 00 7 693 731 | 6-SPEED MANUAL TRANSMISSION - SILVER (10/04 to 08/05) | 1 | |
| 1 | 23 00 7 711 960 | POTENTIOMETER WITH WIRE - L=300MM (10/04 to 08/05) | 1 | |
| 1 | 23 00 7 693 731 | 6-SPEED MANUAL TRANSMISSION - SILVER (from 08/05) | 1 | |
| 2 | 23 12 7 705 085 | SHAFT SEAL - 17X28X7 | 1 | |
| 3 | 23 12 7 705 087 | SHAFT SEAL - 25X40X7 | 1 | |
| 4 | 23 00 8 358 250 | POTENTIOMETER GEAR INDICATOR (to 09/05) | 1 | |
| 4 | 23 00 7 711 960 | POTENTIOMETER WITH WIRE - L=300MM (09/05 to 08/09) | 1 | |
| – | 23 00 7 681 469 | ASA-BOLT - M6X25 (09/05 to 08/09) | 1 | |
| 4 | 23 00 7 711 960 | POTENTIOMETER WITH WIRE - L=300MM (09/05 to 08/09) | 1 | |
| – | 23 00 7 681 469 | ASA-BOLT - M6X25 (09/05 to 08/09) | 1 | |
| 5 | 23 00 7 681 469 | ASA-BOLT - M6X25 | 1 | |
| 6 | 23 00 7 683 375 | SCREW PLUG - M14X1,5 | 1 | |
| 7 | 23 00 7 693 739 | BREATHER (to 09/13) | 1 | |
| 7 | 33 74 8 864 458 | BREATHER | 1 | |
| 7 | 33 74 8 864 458 | Breather | 1 | |
| 8 | 23 12 7 705 086 | SHAFT SEAL - 20X32X8 | 1 | |
| 9 | 11 14 7 671 363 | COVER, CLUTCH | 1 | |
| 10 | 07 12 9 901 130 | ISA SCREW - M6X20-8.8-ZNNIV | 1 | |
| 10 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | 1 | |
| 11 | 23 12 2 330 141 | SHAFT SEAL - 10X18X6 | 1 | |
| – | Shaft seal 10.18.6. | Shaft seal 10.18.6. | 1 | |
| 11 | 23 12 2 330 141 | SHAFT SEAL - 10X18X6 | 1 | |
| – | Shaft seal 10.18.6. | Shaft seal 10.18.6. | 1 | |
| 12 | 23 00 7 721 088 | SCREW PLUG, MAGNETIC - M18X1,5 | 1 | |
| 13 | 07 11 9 963 200 | GASKET RING - A14X18-AL | 1 | |
| 13 | 07 11 9 963 300 | GASKET RING - A18X22-AL | 1 |
