Parts List (14)

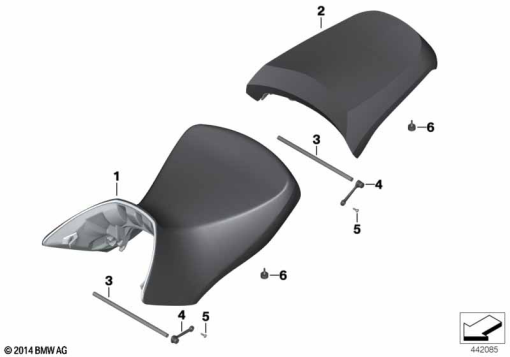

| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 52 53 7 681 139 | SEAT, HIGH, BLACK, FRONT - 870MM/890MM | - | |
52 53 7 681 140 | SEAT, HIGH, GREY, FRONT - 870MM/890MMAlternative for position 1 | - | ||
52 53 7 708 010 | SEAT, BLACK, FRONT - 860/880MMAlternative for position 1 | - | ||
52 53 7 682 895 | SEAT, GRAY, FRONT - 840MM/860MMAlternative for position 1 | - | ||
52 53 7 693 489 | DRIVERS SEAT, BLACK, LOW - 820MMAlternative for position 1 | - | ||
52 53 7 693 490 | SEAT, LOW, GREY, FRONT - 820MMAlternative for position 1 | - | ||
| 2 | 52 53 7 721 896 | PASSENGER SEAT, BLACK | - | |
52 53 7 682 897 | SEAT, GREY REARAlternative for position 2 | - | ||
| 3 | 52 53 7 672 353 | PIPE | - | |
| 4 | 52 53 7 653 537 | HOLDING STRAP | - | |
| 5 | 07 14 6 963 839 | SCREW - 4X14MM | - | |
| 6 | 52 53 1 236 128 | BUMP STOP - H=10 | - | |
| - | 52 53 7 693 489 | DRIVERS SEAT, BLACK, LOW - 820MM | - | |
| - | 52 53 7 693 490 | SEAT, LOW, GREY, FRONT - 820MM | - |
