R1200GS 05-07 (K25) | Rear Axle & Suspension
RIGHT-ANGLE GEARBOX INTEGRAL ABS GEN. 1

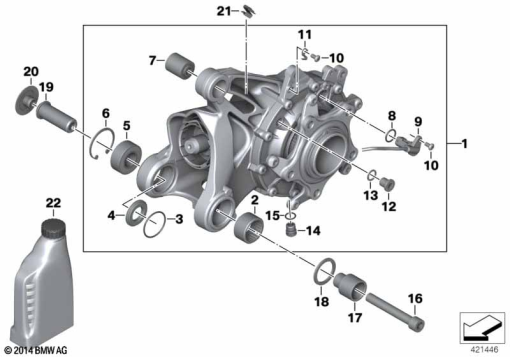

Diagram #33_1771 | 27 parts
100%
Parts List (27)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 33 11 8 530 076 | RIGHT-ANGLE GEARBOX, SILVER - I=31:11=2,82 (to 08/06) | - | |
| 2 | 33 11 7 684 640 | NEEDLE SLEEVE | - | |
| 3 | 07 11 9 904 693 | O-RING - 34X1 | - | |
| 4 | 33 17 7 672 817 | SPACER RING | - | |
| 5 | 33 11 7 665 037 | ANGULAR BALL BEARING | - | |
| 6 | 07 11 9 905 077 | LOCK RING - 42X1,75 | - | |
| 7 | 33 35 8 382 788 | RUBBER MOUNTING | - | |
| 8 | 07 11 9 905 198 | O-RING - 11,3X2,2 (to 08/06) | - | |
| 9 | 34 51 7 666 436 | WHEELSPEED SENSOR (to 08/06) | - | |
| - | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 (to 08/06) | - | |
| - | 07 11 9 905 198 | O-RING - 11,3X2,2 (to 08/06) | - | |
| 10 | 36 31 7 678 083 | OVAL HEAD SCREW - M5X10-10.9 ZNS3 | - | |
| 11 | 34 51 7 695 906 | CABLE HOLDER | - | |
| 12 | 07 11 9 904 550 | SCREW PLUG - M12X1,5-ZNNIV | - | |
| 13 | 07 11 9 963 132 | GASKET RING - A12X16-CU | - | |
| 14 | 33 11 7 705 854 | OIL DRAIN PLUG - M12X1-ZNNIVSI | - | |
| 15 | 33 11 7 695 219 | O-RING - 11,2X1,8 | - | |
| 16 | 07 12 9 905 658 | ISA SCREW - M12X1,5X80-MK | - | |
| 17 | 33 17 7 665 148 | PIVOT PIN | - | |
| - | 33 11 7 684 996 | GASKET RING - 38X30X2,5 | - | |
| 18 | 33 11 7 684 996 | GASKET RING - 38X30X2,5 | - | |
| 19 | 33 17 8 375 112 | PIVOT PIN | - | |
33355A65AB4 | PIVOT PINAlternative for position 19 | - | ||
| 20 | 33 17 7 674 694 | COVER | - | |
| 21 | 07 14 7 566 122 | FIXING CLAMP - A=4,0 - 4,5MM | - | |
| 22 | 83 22 2 445 460 | BMW SYNTHETIC OSP - 1L | - | |
83 22 9 407 768 | BMW SYNTHETIC OSP - 60LAlternative for position 22 | - |
