R1200GS 05-07 (K25) | Pedals

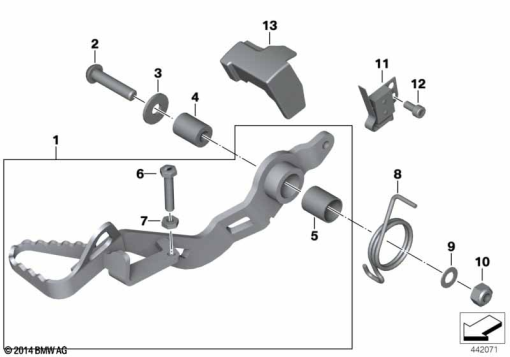

BRAKE PEDAL
Diagram #35_0342 | 17 parts | 7 available in shop
100%
Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 35 21 7 673 168 | BRAKE PEDAL (to 12/05) | 1 | |
| 1 | 35 21 7 695 901 | BRAKE PEDAL (from 12/05) | 1 | |
| 2 | 07 12 9 904 816 | ISA SCREW - M8X40-8.8-MK (to 12/05) | 1 | |
| 2 | 34 11 7 672 808 | OVAL HEAD SCREW - ISA M8X35 MK (from 12/05) | 1 | |
| 3 | 35 21 2 335 498 | WASHER - 8,4 | 1 | |
| 4 | 35 21 2 345 837 | BUSHING | 1 | |
| 5 | 35 21 1 450 231 | BUSHING | 1 | |
| 6 | 35 21 1 231 067 | HEX BOLT - M6X20-8.8ZNS3 (to 12/05) | 1 | |
| 7 | 07 11 9 905 543 | HEX NUT - M6-8-ZNNIV SI (to 12/05) | 1 | |
| 8 | 35 21 7 666 719 | RETAINER SPRING (to 12/05) | 1 | |
| 8 | 35 21 7 653 583 | RETAINER SPRING (from 12/05) | 1 | |
| 9 | 07 11 9 904 115 | WAVE WASHER - 8,4X15-ZNS3 (to 12/05) | 1 | |
| 10 | 07 12 9 904 002 | SELF-LOCKING HEX NUT - M8-8-ZNS3 (to 12/05) | 1 | |
| 11 | 61 31 2 305 933 | BRAKE LIGHT SWITCH FOOT BRAKE - L=910MM | 1 | |
| 12 | 18 12 7 661 887 | FILLISTER HEAD SCREW - M5X8 | 1 | |
| 13 | 34 31 7 673 531 | STOP LIGHT SWITCH COVER (to 12/05) | 1 | |
| 13 | 35 21 7 652 212 | STOP LIGHT SWITCH COVER (from 12/05) | 1 |
