R1200GS 05-07 (K25) | Lighting

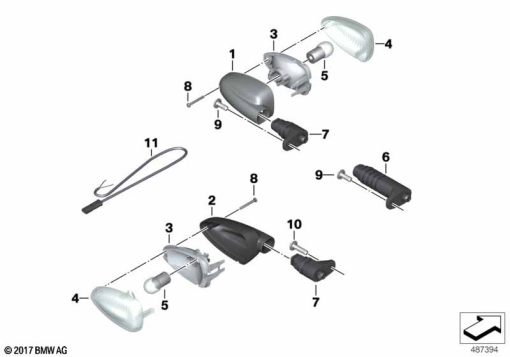

WHITE DIRECTION INDICATOR LIGHTS
Diagram #63_1129 | 10 parts | 2 available in shop
100%
Parts List (10)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 13 7 667 771 | HOUSING | 1 | |
| 2 | 63 13 7 667 772 | HOUSING | 1 | |
| 3 | 63 13 7 684 950 | REFLECTOR | 1 | |
| 4 | 63 13 7 684 528 | LAMP LENS | 1 | |
| 5 | 63 21 7 169 203 | BULB - 10W RY10W | 1 | |
| 6 | 63 13 7 667 768 | HOLDER FOR TURN SIGNAL LAMP | 1 | |
| 7 | 63 23 7 707 346 | TURN INDICATOR HOLDER, REAR | 1 | |
| 8 | 63 13 7 654 275 | FILLISTER HEAD SCREW - 2,9X25 | 1 | |
| 9 | 46 63 7 659 459 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - M6X16 | 1 | |
| 10 | 46 61 7 673 124 | FILLISTER HEAD SCREW - M 6X22 | 1 |
