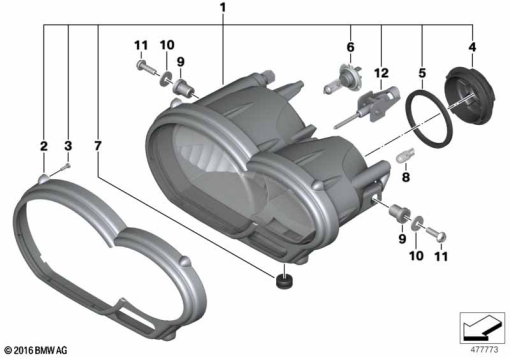

Parts List (11)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 63 12 8 527 540 | HEADLIGHT - SAE | - | |
| 2 | 63 12 7 666 758 | COVER | - | |
| 3 | 63 12 7 692 386 | TORX BOLT - 3,0X10 | - | |
| 4 | 63 12 7 674 984 | HEADLIGHT COVER | - | |
| 6 | 63 21 7 160 780 | BULB - H7/55W | - | |
| 7 | 63 12 7 728 409 | GROMMET | - | |
| 8 | 63 21 7 160 797 | LONGLIFE BULB - 5W | - | |
| 9 | 63 12 7 674 841 | BLIND RIVET NUT, FLAT HEADED - M6 | - | |
| 10 | 07 11 9 904 202 | WASHER - A6,4-ZNNIV SI | - | |
| 11 | 07 12 9 905 386 | ISA SCREW - M6X30-8.8-ZNNIV | - | |
| 12 | 63 12 7 723 839 | HEIGHT ADJUSTMENT | - |
BMW numbers positions across the whole assembly group and lists only the parts supplied for this model, so the drawing can show numbers that do not appear in this list.
