R1200GS 05-07 (K25) | Instruments Dash

BRACKET F INSTRUMENT CLUSTER

Diagram #62_0469 | 4 parts

100%

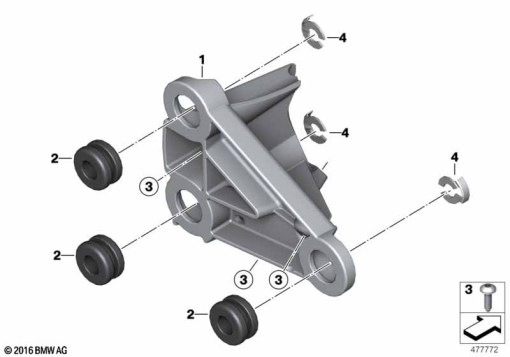

R1200GS 05-07 (K25) BRACKET F INSTRUMENT CLUSTER exploded view parts diagram

Parts List (4)

#Part NumberDescriptionQty
1
62 21 7 666 746
BRACKET F INSTRUMENT CLUSTER1
2
46 63 1 233 200
RUBBER GROMMET1
3
63 31 8 250 789
FILLISTER HEAD SCREW1
4
07 12 9 909 733
SECURING CLIP - ZNNIV SW1
