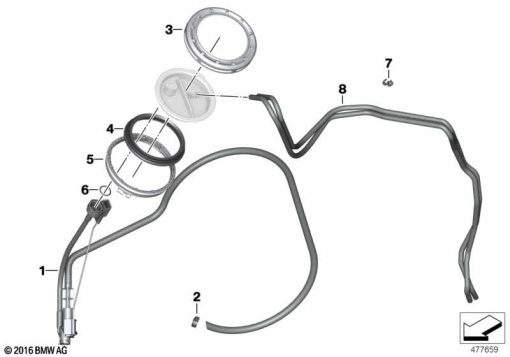

Parts List (8)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 7 685 978 | ADDITIONAL FUEL PUMP | 1 | |
| 2 | 16 14 1 183 085 | HOSE CLAMP - 9,4 - 11,9MM | 1 | |
| 3 | 16 11 6 760 285 | SCREW CAP | 1 | |
| 4 | 16 11 7 677 883 | GASKET | 1 | |
| 5 | 16 14 1 182 903 | SUPPORTING RING | 1 | |
| 6 | 16 14 1 183 543 | O-RING | 1 | |
| 7 | 62 12 2 306 589 | CABLE CLAMP | 1 | |
| 8 | 16 13 7 678 516 | HOSE LINE - L=1165MM | 1 |
