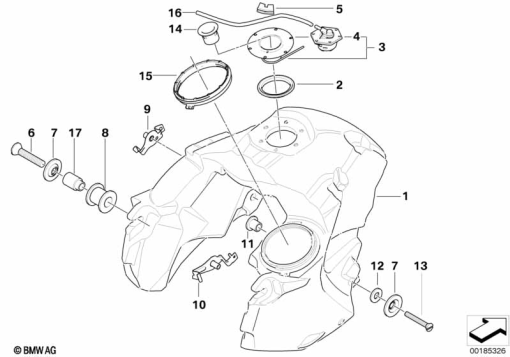

Parts List (17)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 11 7 705 021 | FUEL TANK | - | |
| 2 | 16 11 7 654 903 | GASKET | - | |
| 3 | 16 11 7 669 354 | FILLER TUBE | - | |
| 4 | 16 11 2 347 148 | SAFETY VALVE | - | |
| 5 | 46 63 7 675 039 | RUBBER ELEMENT | - | |
| 6 | 07 11 9 900 138 | COUNTERSUNK HEAD SCREW - M8X25-8.8 | - | |
| 7 | 16 11 7 705 994 | WASHER | - | |
16 11 7 705 994 | WASHERAlternative for position 7 | - | ||
| 8 | 16 11 2 309 211 | RUBBER MOUNTING | - | |
| 9 | 46 63 7 673 908 | BRACKET, TANK FASTENING RIGHT | - | |
| 10 | 46 63 7 691 231 | BRACKET, TANK FASTENING LEFT | - | |
| 11 | 16 11 2 309 228 | RUBBER MOUNTING | - | |
| 12 | 16 11 2 309 175 | RUBBER WASHER | - | |
| 13 | 07 11 9 904 901 | COUNTERSUNK HEAD SCREW - M8X40 | - | |
| 14 | 16 11 7 678 016 | SPACER | - | |
| 15 | 16 14 1 182 903 | SUPPORTING RING | - | |
| 16 | 13 53 2 325 737 | HOSE RUNNING METER - 5X10 (meter) | - |
