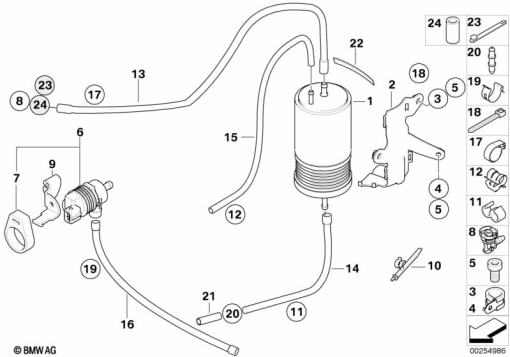

Parts List (18)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 16 13 1 464 924 | ACTIVATED CHARCOAL FILTER | 1 | |
| 2 | 16 13 7 673 783 | BRACKET ACTIVATED CARBON CONTAINER | 1 | |
| 3 | 16 13 7 674 595 | PIPE CLAMP - D=25 | 1 | |
| 4 | 16 13 7 674 594 | PIPE CLAMP - D=18 | 1 | |
| 5 | 07 12 9 904 588 | ISA SCREW - M6X16-8.8-ZNS3 | 1 | |
| 6 | 13 90 1 433 603 | FUEL TANK BREATHER VALVE | 1 | |
| 7 | 13 90 1 433 601 | BRACKET VENTILATION VALVE | 1 | |
| 8 | 16 13 1 183 490 | QUICK-RELEASE COUPLING | 1 | |
| 9 | 16 13 7 673 784 | BRACKET VENTILATION VALVE | 1 | |
| 10 | 13 31 1 707 705 | HOSE CLAMP | 1 | |
| 11 | 62 12 2 306 589 | CABLE CLAMP | 1 | |
| 12 | 22 11 1 093 424 | FIXING CLAMP | 1 | |
| 13 | 16 13 7 678 517 | HOSE LINE | 1 | |
| 14 | 16 13 7 678 518 | HOSE LINE | 1 | |
| 15 | 16 13 7 678 519 | HOSE LINE | 1 | |
| 16 | 16 13 7 678 520 | HOSE LINE | 1 | |
| 17 | 62 12 2 306 589 | CABLE CLAMP | 1 | |
| 18 | 16 13 1 465 035 | CABLE TIE | 1 |
