R1200GS 05-07 (K25) | Fuel Preparation
INTAKE SILENCER / FILTER CARTRIDGE INTAKE SILENCER / FILTER CART

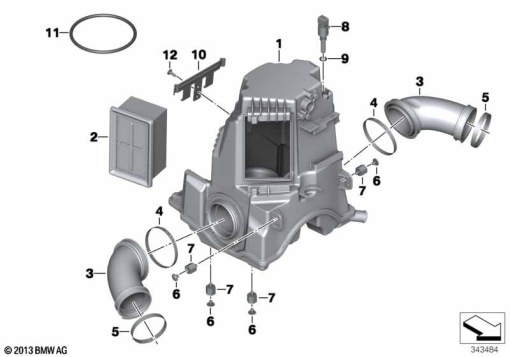

Diagram #13_1118 | 16 parts
100%
Parts List (16)
| # | Part Number | Description | Qty | |
|---|---|---|---|---|
| 1 | 13 71 7 672 506 | INTAKE MUFFLER | - | |
| 2 | 13 71 7 672 552 | AIR FILTER ELEMENT | - | |
| 3 | 13 71 7 672 553 | SUCTION PIPE LEFT | - | |
13 71 7 672 554 | SUCTION PIPE RIGHTAlternative for position 3 | - | ||
| 4 | 13 71 7 680 687 | MUFFLER CLAMP - D=79.5 | - | |
| 5 | 13 54 7 680 688 | MUFFLER CLAMP - D=65 | - | |
| 6 | 41 35 7 042 973 | TORX-BOLT WITH WASHER - M6X8 | - | |
| 7 | 13 71 7 672 542 | SWINGING METAL BUFFER | - | |
| 8 | 13 62 9 899 008 | INTAKE AIR TEMPERATURE SENSOR | - | |
| 9 | 13 62 1 743 299 | O-RING - 8X3 | - | |
| 10 | 46 63 7 688 351 | HOLDER | - | |
| 11 | 11 13 1 460 425 | O-RING - 88X3 | - | |
| 12 | 46 63 2 325 998 | FLANGED CAP SCREW - M5X16SW (to 12/08) | - | |
07 14 2 758 504 | OVAL-HEAD SCREW WITH ANTI-ROTATION LOCK - ISA M5X16Alternative for position 12 | - | ||
06 32 7 651 212 | BINDING HEAD SCREW - M5X16-A2-80Alternative for position 12 | - | ||
51 12 1 964 177 | SCREW FOR THERMOPLASTIC PLASTICSAlternative for position 12 | - |
